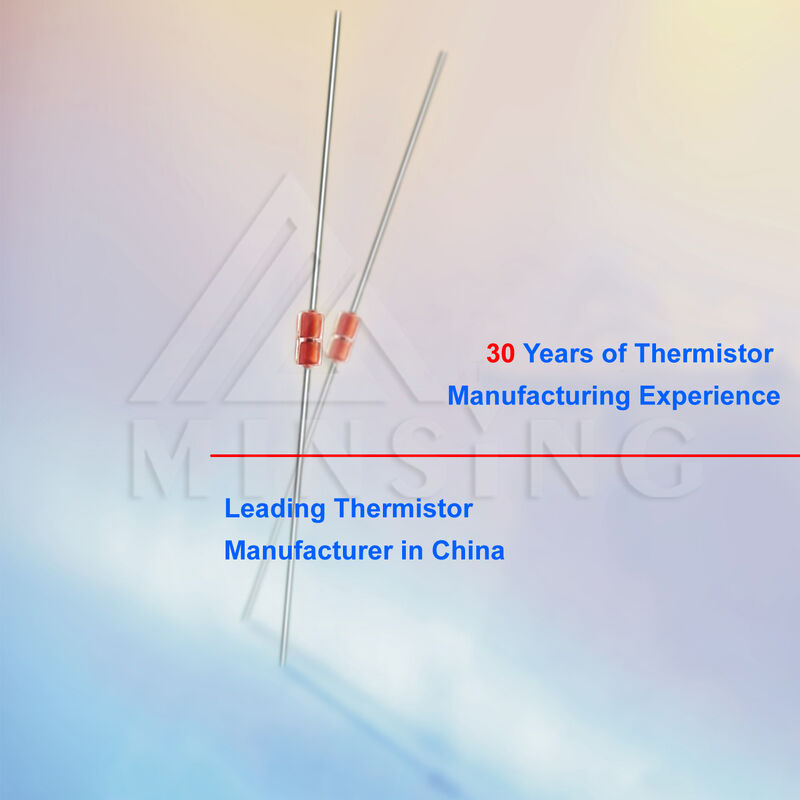

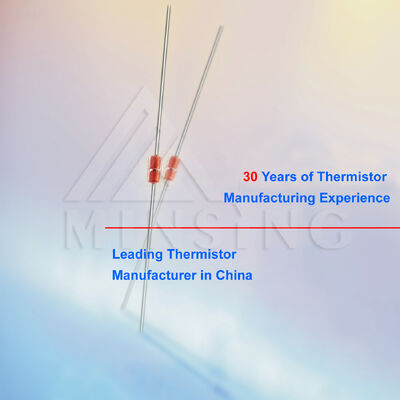

DO-35 Standard Series Glass Encapsulated Thermistors
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Hefei Minsing |
| Certification: | UL,REACH, ROHS |
| Numéro de modèle: | MF58, DO35 |
Conditions de paiement et expédition:
| Quantité de commande min: | 500 pièces |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | En vrac, bande |
| Délai de livraison: | 2-7 jours ouvrables |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 100 millions de pièces par an |
|
Détail Infomation |
|||
| Matériau de tête: | Verre | Fil de plomb: | Fil d'acier plaqué cuivre Ni ou Sn |
|---|---|---|---|
| Taille de la tête: | Φ1.8mm | Longueur de fil: | 28mm |
| R25℃: | 0,3KΩ-4000KΩ | Valeur B: | 2500K-5000K |
| R de tolérance: | 1%, 2%, 3%, 5% | Tolérance de B: | 1%, 2%, 3%, 5% |
Description de produit

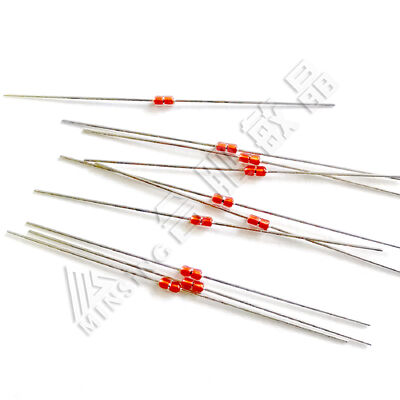

DO-35 Standard Series Glass Encapsulated Thermistors
DO-35 standard glass-encapsulated NTC thermistors adopt hermetic glass sealing with axial leads, featuring standardized dimensions, high temperature resistance and excellent long-term stability, perfectly suited for automatic assembly insertion.
Features:
• Stability, high reliability
• Resistance range: 0.3 ~ 4000KΩ
• High resistance precision
• Due to the use of glass packaging, can be used at high temperature and humidity and other harsh environments
• Small size, light weight, rugged, easy in Automated Installer
• Thermal sensing quickly
• Working temperature range: -55 ℃ ~ + 300 ℃
• Body size: Φ1.8mm X 3.8mm
• Agency recognition:UL/cUL
• RoHS compliant
Applications:
Temperature compensation and detection for :
• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
• Office equipment (copiers, printers etc.)
• Industrial, medical, environmental, weather and food processing equipment
• Liquid level detection and flow rate measurement
• Mobile phone battery
• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.
MJ MF 58 -3470 -103 J
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Glass sealing type MF58 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF58-280-301□ | 0.3 | 2800 |
In still air ≥ 2.4mW/℃ |
In still air ≤ 10s |
-55+300℃ |
| MJMF58-338-202□ | 2 | 3380 | |||
| MJMF58-347/395-502□ | 5 | 3470/3950 | |||
| MJMF58-338/347-103□ | 10 | 3380/3470 | |||
| MJMF58-360//395-103□ | 10 | 3600/3950 | |||
| MJMF58-425-203□ | 20 | 4250 | |||
| MJMF58-395/399-473□ | 47 | 3950/3990 | |||
| MJMF58-395/399-503□ | 50 | 3950/3990 | |||
| MJMF58-395/399-104□ | 100 | 3950/3990 | |||
| MJMF58-420/425-204□ | 200 | 4200/4250 | |||
| MJMF58-440-474□ | 470 | 4400 | |||
| MJMF58-445-145□ | 1400 | 4450 |
